Examples

# frozen_string_literal: true

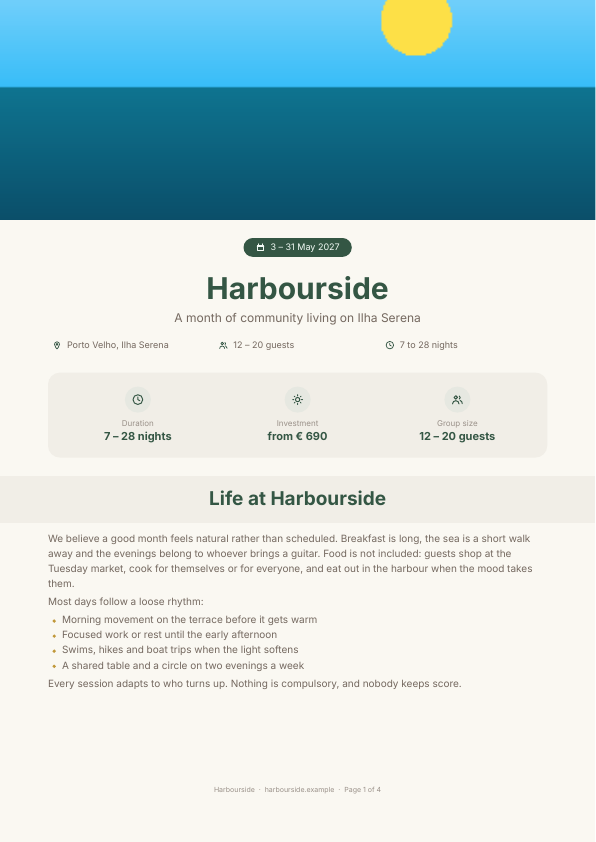

# An A4 event flyer: a cover photo bled to the page edges, a date pill, a
# stats band, prose from HTML, a tilted photo collage, a price table,
# accommodation cards, a gallery grid, testimonials and a call to action with
# a link. Run it to write examples/flyer.pdf:
#
#   ruby -Ilib examples/flyer.rb
#   ruby -Ilib exe/stationery render examples/flyer.rb
require "stationery"

class ExampleFlyer < Stationery::Document
  ASSETS = File.expand_path("assets", __dir__)
  PAGE = "#FAF8F2"
  BAND = "#F1EEE7"
  HAIRLINE = "#E3DDD3"
  PRIMARY = "#345644"
  PRIMARY_CONTENT = "#F3FBF6"
  ACCENT = "#C1983A"
  INK = "#3A2A20"
  MUTED = "#74685F"
  FAINT = "#9A9189"
  TINT = "#E6E8E1"
  MARGIN = 48
  COVER_HEIGHT = 220
  OVERHANG = 24

  SVG_OPEN = '<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24" fill="none" stroke="currentColor" ' \
             'stroke-width="1.8" stroke-linecap="round" stroke-linejoin="round">'
  ICONS = {
    calendar: '<path d="M4 6h16v14H4z M4 10h16 M8 3v4 M16 3v4"/>',
    pin: '<path d="M12 21s-6-5.5-6-11a6 6 0 0 1 12 0c0 5.5-6 11-6 11z"/><circle cx="12" cy="10" r="2.2"/>',
    users: '<circle cx="9" cy="8" r="3.2"/>' \
           '<path d="M3 20a6 6 0 0 1 12 0 M15.5 5.5a3 3 0 0 1 0 5.5 M17 13.5a6 6 0 0 1 4 6"/>',
    clock: '<circle cx="12" cy="12" r="9"/><path d="M12 7v5l3.5 2"/>',
    check: '<path d="M5 12.5l4.5 4.5L19 7.5"/>',
    quote: '<path d="M7 16c-1.5 0-3-1.5-3-3.5S5.5 8 8 7l1 1.5c-1.5.7-2 1.6-2 2.5 1.5 0 2.5 1 2.5 2.5S8.5 16 7 16z ' \
           'M16 16c-1.5 0-3-1.5-3-3.5S14.5 8 17 7l1 1.5c-1.5.7-2 1.6-2 2.5 1.5 0 2.5 1 2.5 2.5S17.5 16 16 16z"/>',
    sun: '<circle cx="12" cy="12" r="4"/><path d="M12 3v2 M12 19v2 M3 12h2 M19 12h2 M5.6 5.6l1.4 1.4 M17 17l1.4 1.4 ' \
         'M5.6 18.4L7 17 M17 7l1.4-1.4"/>'
  }.freeze

  LIFE = <<~HTML
    <p>We believe a good month feels natural rather than scheduled. Breakfast is long, the sea is a short walk
    away and the evenings belong to whoever brings a guitar. Food is not included: guests shop at the Tuesday
    market, cook for themselves or for everyone, and eat out in the harbour when the mood takes them.</p>
    <p>Most days follow a loose rhythm:</p>
    <ul>
      <li>Morning movement on the terrace before it gets warm</li>
      <li>Focused work or rest until the early afternoon</li>
      <li>Swims, hikes and boat trips when the light softens</li>
      <li>A shared table and a circle on two evenings a week</li>
    </ul>
    <p>Every session adapts to who turns up. Nothing is compulsory, and nobody keeps score.</p>
  HTML

  page size: :a4, margin: MARGIN
  default_text size: 10, color: INK, leading: 3
  metadata title: "Harbourside — a month on Ilha Serena", author: "stationery example", lang: "en"
  tagged

  # A cream page, painted under every page.
  page_template(layer: :background) do |page|
    canvas(at: [0, 0], width: page.width, height: page.height) do |c, rect|
      c.fill_rect(rect.x, rect.y, rect.width, rect.height, color: PAGE)
    end
  end

  footer(gap: 12) do |page|
    text "Harbourside  ·  harbourside.example  ·  Page #{page.number} of #{page.count}",
         size: 7, color: FAINT, align: :center
  end

  def self.preview = new

  def view_template
    hero
    stats
    section("Life at Harbourside", band: true)
    html LIFE, styles: { p: { color: MUTED }, ul: { gap: 3, marker_color: ACCENT, indent: 14 } }
    spacer 10
    collage
    section("What's included")
    included
    section("Prices", band: true)
    prices
    section("Where you sleep")
    accommodation
    section("Impressions", band: true)
    gallery
    section("What guests say")
    testimonials
    call_to_action
  end

  private

  # ---- hero ----------------------------------------------------------------

  # The cover photo covers the page's full width and bleeds off the top; the
  # positioned box takes no flow height, so a spacer reserves the space.
  def hero
    box(at: [0, 0], width: page_width) do
      image photo("sea"), width: page_width, height: COVER_HEIGHT, fit: :cover, alt: "The harbour at first light"
    end
    spacer COVER_HEIGHT - MARGIN + 18
    date_pill
    spacer 14
    text "Harbourside", size: 30, weight: :bold, color: PRIMARY, align: :center, heading: 1
    spacer 4
    text "A month of community living on Ilha Serena", size: 12, color: MUTED, align: :center
    spacer 14
    meta_row
  end

  def date_pill
    group(align: :center) do
      box(width: :auto, background: PRIMARY, radius: 10, padding: [4, 12]) do
        row(gap: 5, align: :middle) do
          column(width: :auto) { icon(:calendar, size: 10, color: PRIMARY_CONTENT) }
          column(width: :auto) { text "3 – 31 May 2027", size: 9, color: PRIMARY_CONTENT }
        end
      end
    end
  end

  def meta_row
    row do
      [[:pin, "Porto Velho, Ilha Serena"], [:users, "12 – 20 guests"], [:clock, "7 to 28 nights"]].each do |name, label|
        column do
          row(gap: 5, align: :middle) do
            column(width: 14, padding: [0, 0, 0, 4]) { icon(name, size: 10) }
            column { text label, size: 9, color: MUTED }
          end
        end
      end
    end
  end

  # ---- stats band ----------------------------------------------------------

  def stats
    spacer 22
    box(background: BAND, radius: 12, padding: [14, 10]) do
      row do
        [[:clock, "Duration", "7 – 28 nights"], [:sun, "Investment", "from € 690"],
         [:users, "Group size", "12 – 20 guests"]].each do |name, label, value|
          column(align: :center) { stat(name, label, value) }
        end
      end
    end
  end

  def stat(name, label, value)
    icon_disc(name)
    spacer 6
    text label, size: 8, color: FAINT, align: :center
    spacer 2
    text value, size: 11, weight: :bold, color: PRIMARY, align: :center
  end

  def icon_disc(name, diameter: 26)
    group(align: :center) do
      box(width: diameter, height: diameter, radius: diameter / 2.0, background: TINT, valign: :middle) do
        icon(name, size: 13, align: :center)
      end
    end
  end

  # ---- sections ------------------------------------------------------------

  # A section heading, on a full-bleed tinted strip for every other section,
  # bookmarked in the outline and kept with the start of its section.
  def section(title, band: false)
    spacer 18
    group(keep_with_next: 120, bookmark: title) do
      if band
        box(background: BAND, outset: [0, MARGIN, 0, MARGIN], padding: [12, 0]) { heading(title) }
      else
        heading(title)
      end
      spacer 10
    end
  end

  def heading(title) = text(title, size: 19, weight: :bold, color: PRIMARY, align: :center, heading: 2)

  def collage
    group(align: :center) do
      box(padding: OVERHANG, width: :auto) do
        stack do
          box(width: :auto, radius: 16, shadow: true) do
            image photo("hills"), width: 300, height: 225, fit: :cover, radius: 16, alt: "Hills above the harbour"
          end
          layer(bottom: -OVERHANG, left: -OVERHANG, width: 0.4, rotate: -3, **frame) do
            image photo("stone"), width: 112, height: 84, fit: :cover, radius: 8, alt: "The old stone quay"
          end
          layer(top: -OVERHANG, right: -OVERHANG, width: 1/3r, rotate: 2, **frame) do
            image photo("bay"), width: 92, height: 92, fit: :cover, radius: 8, alt: "The bay from the terrace"
          end
        end
      end
    end
  end

  def frame = { padding: 4, background: "#FFFFFF", radius: 12, shadow: true }

  def included
    items = ["Your room for the whole stay", "Morning movement, six days a week",
             "Two evening circles every week", "A boat day and two guided hikes",
             "A shared kitchen and the Tuesday market run", "Fast Wi-Fi and a quiet room to work in"]
    items.each_slice(2) do |pair|
      row(gap: 14) do
        pair.each do |item|
          column(width: 0.5) do
            row(gap: 6) do
              column(width: 10, padding: [3, 0, 0, 0]) { icon(:check, size: 9, color: ACCENT) }
              column { text item, size: 10, leading: 2 }
            end
          end
        end
      end
      spacer 7
    end
  end

  def prices
    text "Prices are per person and include everything listed above. Children under twelve stay free in " \
         "their parents' room.", color: MUTED, align: :center
    spacer 10
    rows = [["Stay", "Regular", "Early bird\n<font size='7'>until 31 January</font>", "Returning guests"],
            ["7 nights", "€ 690", "€ 620", "€ 590"], ["14 nights", "€ 1,290", "€ 1,160", "€ 1,090"],
            ["21 nights", "€ 1,790", "€ 1,610", "€ 1,520"], ["28 nights", "€ 2,190", "€ 1,970", "€ 1,860"]]
    table(rows, width: :full, header: true,
                cell: { markup: true, size: 9.5, borders: [:bottom], border_color: HAIRLINE, padding: [6, 8] }) do |t|
      t.row(0).set(background: PRIMARY, color: PRIMARY_CONTENT, weight: :bold)
      t.columns(1..).align = :right
      t.zebra(from: 2, color: BAND)
    end
    spacer 8
    text "Returning guests are anyone who has stayed with us before, in any house.", size: 8.5, color: FAINT,
                                                                                     align: :center
  end

  def accommodation
    [["The Harbour House", "6 rooms · sleeps 10", "ridge",
      "The old harbourmaster's house: a big kitchen, a walled garden and rooms that look over the boats."],
     ["The Terrace Apartments", "2 apartments · sleeps 6", "wall",
      "Two quiet apartments above the square, each with its own kitchen and a terrace that catches the " \
      "afternoon sun."]].each do |name, capacity, picture, blurb|
      group(keep_together: true) do
        row(gap: 14, align: :middle) do
          column(width: 150) { image photo(picture), width: 150, height: 96, fit: :cover, radius: 10, alt: name }
          column do
            text name, size: 13, weight: :bold, color: PRIMARY, heading: 3
            text capacity, size: 9, color: ACCENT
            spacer 4
            text blurb, color: MUTED
          end
        end
      end
      spacer 14
    end
  end

  def gallery
    %w[sea hills stone bay ridge dunes].each_slice(3) do |names|
      row(gap: 8) do
        names.each do |name|
          column(width: 1 / 3.0) do
            image photo(name), width: 161, height: 96, fit: :cover, radius: 8, alt: "Impression"
          end
        end
      end
      spacer 8
    end
  end

  def testimonials
    [["Three weeks in, I stopped checking the time. That has never happened to me on a holiday.", "Mara, Vienna"],
     ["Came for the sea, stayed for the Tuesday market and the people around the table.", "Jonas, Malmö"]]
      .each do |quote, author|
      group(keep_together: true) do
        box(role: :blockquote, background: BAND, radius: 12, padding: [14, 18]) do
          icon(:quote, size: 14, color: ACCENT, align: :center)
          spacer 6
          text %("#{quote}"), style: :italic, color: MUTED, align: :center
          spacer 4
          text author, size: 9, color: PRIMARY, align: :center
        end
      end
      spacer 10
    end
  end

  # A pill the whole shape of which is clickable, and the address spelled out
  # for the printed copy.
  def call_to_action
    url = "https://harbourside.example/apply"
    spacer 22
    group(keep_together: true) do
      box(background: BAND, outset: [0, MARGIN, 0, MARGIN], padding: [16, 0]) do
        text "Ready to come?", size: 19, weight: :bold, color: PRIMARY, align: :center, heading: 2
        spacer 6
        text "Applications open until the house is full. We read every one and reply within a week.",
             color: MUTED, align: :center
        spacer 12
        group(align: :center) do
          box(width: :auto, height: 26, background: PRIMARY, radius: 13, padding: [0, 28], valign: :middle,
              link: url) do
            text "Apply for a call", size: 11, color: PRIMARY_CONTENT, align: :center
          end
        end
        spacer 8
        text(size: 9, align: :center) { |t| t.link(url) { t.color(MUTED, "or write to [email protected]") } }
      end
    end
  end

  # ---- helpers -------------------------------------------------------------

  def page_width = Stationery::Page.new(size: :a4).width
  def photo(name) = File.join(ASSETS, "#{name}.png")

  # Decorative line icons; the label beside each one carries the meaning.
  def icon(name, size: 12, color: PRIMARY, align: nil)
    svg "#{SVG_OPEN}#{ICONS.fetch(name)}</svg>", width: size, height: size, color:, align:, alt: false
  end
end

if $PROGRAM_NAME == __FILE__
  flyer = ExampleFlyer.preview
  flyer.to_pdf(File.expand_path("flyer.pdf", __dir__))
  warn flyer.warnings.map(&:message) if flyer.warnings.any?
  puts "wrote examples/flyer.pdf"
end

# frozen_string_literal: true

# An invoice: a logo beside an amount-due callout, a summary table without
# borders, a line-item table with a coloured header, zebra rows and a totals
# row, in a font family of its own. Run it to write examples/invoice.pdf:
#
#   ruby -Ilib examples/invoice.rb
#   ruby -Ilib exe/stationery render examples/invoice.rb
require "stationery"

class ExampleInvoice < Stationery::Document
  FONTS = File.expand_path("../spec/fixtures/fonts", __dir__)
  LOGO = File.expand_path("assets/logo.png", __dir__)

  ACCENT = "#4F46E5"
  INK = "#1F2937"
  MUTED = "#6B7280"
  HAIRLINE = "#E5E7EB"
  ZEBRA = "#F9FAFB"
  CALLOUT = "#F3F4F6"

  # Open Sans lives with the test suite, so an installed gem sets the invoice
  # in the Inter it bundles.
  FAMILY = File.exist?(File.join(FONTS, "OpenSans-Regular.ttf")) ? "Open Sans" : "Inter"

  page size: :a4, margin: [40, 44, 56, 44]
  if FAMILY == "Open Sans"
    font_family "Open Sans",
                regular: File.join(FONTS, "OpenSans-Regular.ttf"), bold: File.join(FONTS, "OpenSans-Bold.ttf"),
                italic: File.join(FONTS, "OpenSans-Italic.ttf"),
                bold_italic: File.join(FONTS, "OpenSans-BoldItalic.ttf")
  end
  default_text font: FAMILY, size: 9, color: INK
  metadata title: "Invoice", creator: "stationery example"

  page_template do |page|
    box(at: [page.margin[3], page.height - 34], width: page.content_box.width) do
      text "Page #{page.number} of #{page.count}", size: 7, color: MUTED, align: :right
    end
  end

  def self.preview
    items = [["Brand workshop", 1, 2400.0], ["Logo design, three concepts", 1, 3200.0],
             ["Illustration set (12)", 12, 180.0], ["Print-ready files", 1, 450.0], ["Rush delivery", 1, 300.0]]
    new(number: "INV-2026-042", items:, customer: "Müller & Söhne GmbH", due: "26 October 2026")
  end

  def initialize(number:, items:, customer:, due:)
    super()
    @number = number
    @items = items
    @customer = customer
    @due = due
  end

  def view_template
    header
    spacer 18
    summary
    spacer 22
    parties
    spacer 26
    line_items
    spacer 28
    footer
  end

  private

  def header
    row(align: :middle) do
      column(width: 0.5) { text "Invoice #{@number}", size: 22, weight: :bold }
      column(width: 0.5, align: :right) { image LOGO, height: 34, align: :right }
    end
    spacer 10
    rule height: 3, color: ACCENT
  end

  def summary
    row(gap: 24) do
      column do
        table([["Invoice date", "26 September 2026"], ["Due date", @due], ["Reference", "PO-7781"]],
              widths: [90, nil], cell: { borders: [], padding: [1, 12, 2, 0], color: MUTED }) do |t|
          t.column(0).weight = :bold
          t.column(0).color = INK
        end
      end
      column(width: 190) { amount_due }
    end
  end

  def amount_due
    box(background: CALLOUT, radius: 6, padding: 12) do
      text "AMOUNT DUE", size: 8, weight: :bold, color: MUTED, letter_spacing: 0.5
      text money(total), size: 19, weight: :bold, color: ACCENT
      spacer 6
      row { column(width: :auto) { status_pill("OPEN", "#3B82F6") } }
    end
  end

  def status_pill(label, color)
    box(background: color, radius: 7, padding: [2, 9]) { text label, size: 7, weight: :bold, color: "#FFFFFF" }
  end

  def parties
    row(gap: 24) do
      column(width: 0.5) do
        party("FROM", ["<b>Acme Studio AB</b>", "Storgatan 1", "111 22 Stockholm", "[email protected]"])
      end
      column(width: 0.5) { party("BILL TO", ["<b>#{@customer}</b>", "Hauptstraße 5", "10115 Berlin"]) }
    end
  end

  def party(label, lines)
    text label, size: 8, weight: :bold, color: MUTED, letter_spacing: 0.5
    spacer 3
    text lines.join("\n"), markup: true, leading: 1
  end

  def line_items
    rows = [%w[Description Qty Price VAT Amount]]
    @items.each { |name, qty, price| rows << [name, qty.to_s, money(price), "25%", money(qty * price)] }
    rows << ["", "", "", "Subtotal", money(subtotal)]
    rows << ["", "", "", "VAT 25%", money(vat)]
    rows << ["", "", "", "Total", money(total)]
    count = @items.size

    table(rows, width: :full, widths: [nil, 45, 80, 60, 85], header: true,
                cell: { padding: [7, 8], borders: [] }) do |t|
      t.row(0).set(background: ACCENT, color: "#FFFFFF", weight: :bold)
      t.columns(1..).align = :right
      t.zebra(from: 2, to: count, color: ZEBRA)
      t.row(count + 1).columns(3..).set(borders: [:top], border_color: HAIRLINE, border_width: 1)
      t.row(-1).set(weight: :bold, size: 11)
    end
  end

  def footer
    group(keep_together: true) do
      rule height: 1, color: HAIRLINE
      spacer 14
      text "Thank you for your business", size: 9, weight: :bold
      spacer 3
      text "Pay to IBAN SE45 5000 0000 0583 9825 7466 within 30 days. Questions? " \
           "<link href='mailto:[email protected]'><color rgb='#{ACCENT}'>[email protected]</color></link>",
           markup: true, size: 8.5, color: MUTED, leading: 2
    end
  end

  def subtotal = @items.sum { |_, qty, price| qty * price }
  def vat = (subtotal * 0.25).round(2)
  def total = subtotal + vat

  def money(amount)
    whole, cents = format("%.2f", amount).split(".")
    "€#{whole.reverse.scan(/\d{1,3}/).join(" ").reverse},#{cents}"
  end
end

if $PROGRAM_NAME == __FILE__
  ExampleInvoice.preview.to_pdf(File.expand_path("invoice.pdf", __dir__))
  puts "wrote examples/invoice.pdf"
end

# frozen_string_literal: true

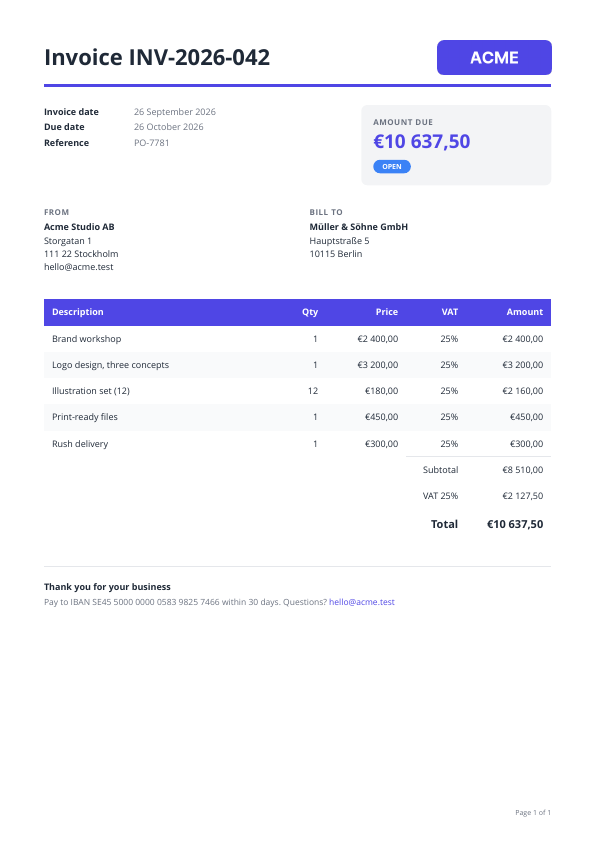

# A Factur-X (ZUGFeRD) e-invoice: the example invoice as PDF/A-3b with its
# EN 16931 invoice XML embedded, so accounting software books what people read.
# Run it to write examples/e_invoice.pdf:
#
#   ruby -Ilib examples/e_invoice.rb
#   ruby -Ilib exe/stationery render examples/e_invoice.rb
require "date"
require "stationery"
require_relative "invoice"

class ExampleEInvoice < ExampleInvoice
  ISSUED = Date.new(2026, 9, 26)
  VAT_RATE = 25
  SELLER = { name: "Acme Studio AB", street: "Storgatan 1", postcode: "111 22", city: "Stockholm", country: "SE",
             email: "[email protected]", vat_id: "SE556677889901", iban: "SE4550000000058398257466" }.freeze
  BUYER = { street: "Hauptstraße 5", postcode: "10115", city: "Berlin", country: "DE", vat_id: "DE123456789" }.freeze

  metadata title: "E-invoice", author: SELLER[:name], lang: "en"

  # The XML comes from the document being rendered, so every invoice embeds
  # its own. `factur_x` also makes the file PDF/A-3b and identifies the
  # invoice in the XMP metadata.
  factur_x(profile: :en16931) { cross_industry_invoice }

  private

  # SAMPLE CODE. Stationery embeds the invoice XML, it does not write it: in
  # an application the XML comes from your invoicing code or a library made
  # for it. This is the smallest Cross Industry Invoice that satisfies
  # EN 16931 for the lines above: one VAT rate, no allowances or charges.
  def cross_industry_invoice
    <<~XML
      <?xml version="1.0" encoding="UTF-8"?>
      <rsm:CrossIndustryInvoice xmlns:rsm="urn:un:unece:uncefact:data:standard:CrossIndustryInvoice:100" xmlns:ram="urn:un:unece:uncefact:data:standard:ReusableAggregateBusinessInformationEntity:100" xmlns:udt="urn:un:unece:uncefact:data:standard:UnqualifiedDataType:100">
        <rsm:ExchangedDocumentContext>
          <ram:GuidelineSpecifiedDocumentContextParameter>
            <ram:ID>urn:cen.eu:en16931:2017</ram:ID>
          </ram:GuidelineSpecifiedDocumentContextParameter>
        </rsm:ExchangedDocumentContext>
        <rsm:ExchangedDocument>
          <ram:ID>#{xml(@number)}</ram:ID>
          <ram:TypeCode>380</ram:TypeCode>
          <ram:IssueDateTime>#{xml_date(ISSUED)}</ram:IssueDateTime>
        </rsm:ExchangedDocument>
        <rsm:SupplyChainTradeTransaction>
      #{@items.each_with_index.map { |item, index| xml_line(index + 1, *item) }.join.chomp}
          <ram:ApplicableHeaderTradeAgreement>
            <ram:SellerTradeParty>
              <ram:Name>#{xml(SELLER[:name])}</ram:Name>
      #{xml_address(SELLER)}
              <ram:URIUniversalCommunication>
                <ram:URIID schemeID="EM">#{xml(SELLER[:email])}</ram:URIID>
              </ram:URIUniversalCommunication>
      #{xml_vat_id(SELLER)}
            </ram:SellerTradeParty>
            <ram:BuyerTradeParty>
              <ram:Name>#{xml(@customer)}</ram:Name>
      #{xml_address(BUYER)}
      #{xml_vat_id(BUYER)}
            </ram:BuyerTradeParty>
            <ram:BuyerOrderReferencedDocument>
              <ram:IssuerAssignedID>PO-7781</ram:IssuerAssignedID>
            </ram:BuyerOrderReferencedDocument>
          </ram:ApplicableHeaderTradeAgreement>
          <ram:ApplicableHeaderTradeDelivery>
            <ram:ActualDeliverySupplyChainEvent>
              <ram:OccurrenceDateTime>#{xml_date(ISSUED)}</ram:OccurrenceDateTime>
            </ram:ActualDeliverySupplyChainEvent>
          </ram:ApplicableHeaderTradeDelivery>
          <ram:ApplicableHeaderTradeSettlement>
            <ram:InvoiceCurrencyCode>EUR</ram:InvoiceCurrencyCode>
            <ram:SpecifiedTradeSettlementPaymentMeans>
              <ram:TypeCode>58</ram:TypeCode>
              <ram:PayeePartyCreditorFinancialAccount>
                <ram:IBANID>#{SELLER[:iban]}</ram:IBANID>
              </ram:PayeePartyCreditorFinancialAccount>
            </ram:SpecifiedTradeSettlementPaymentMeans>
            <ram:ApplicableTradeTax>
              <ram:CalculatedAmount>#{xml_amount(vat)}</ram:CalculatedAmount>
              <ram:TypeCode>VAT</ram:TypeCode>
              <ram:BasisAmount>#{xml_amount(subtotal)}</ram:BasisAmount>
              <ram:CategoryCode>S</ram:CategoryCode>
              <ram:RateApplicablePercent>#{VAT_RATE}</ram:RateApplicablePercent>
            </ram:ApplicableTradeTax>
            <ram:SpecifiedTradePaymentTerms>
              <ram:DueDateDateTime>#{xml_date(Date.parse(@due))}</ram:DueDateDateTime>
            </ram:SpecifiedTradePaymentTerms>
            <ram:SpecifiedTradeSettlementHeaderMonetarySummation>
              <ram:LineTotalAmount>#{xml_amount(subtotal)}</ram:LineTotalAmount>
              <ram:TaxBasisTotalAmount>#{xml_amount(subtotal)}</ram:TaxBasisTotalAmount>
              <ram:TaxTotalAmount currencyID="EUR">#{xml_amount(vat)}</ram:TaxTotalAmount>
              <ram:GrandTotalAmount>#{xml_amount(total)}</ram:GrandTotalAmount>
              <ram:DuePayableAmount>#{xml_amount(total)}</ram:DuePayableAmount>
            </ram:SpecifiedTradeSettlementHeaderMonetarySummation>
          </ram:ApplicableHeaderTradeSettlement>
        </rsm:SupplyChainTradeTransaction>
      </rsm:CrossIndustryInvoice>
    XML
  end

  def xml_line(number, name, quantity, price)
    <<~XML.gsub(/^/, "    ")
      <ram:IncludedSupplyChainTradeLineItem>
        <ram:AssociatedDocumentLineDocument>
          <ram:LineID>#{number}</ram:LineID>
        </ram:AssociatedDocumentLineDocument>
        <ram:SpecifiedTradeProduct>
          <ram:Name>#{xml(name)}</ram:Name>
        </ram:SpecifiedTradeProduct>
        <ram:SpecifiedLineTradeAgreement>
          <ram:NetPriceProductTradePrice>
            <ram:ChargeAmount>#{xml_amount(price)}</ram:ChargeAmount>
          </ram:NetPriceProductTradePrice>
        </ram:SpecifiedLineTradeAgreement>
        <ram:SpecifiedLineTradeDelivery>
          <ram:BilledQuantity unitCode="C62">#{quantity}</ram:BilledQuantity>
        </ram:SpecifiedLineTradeDelivery>
        <ram:SpecifiedLineTradeSettlement>
          <ram:ApplicableTradeTax>
            <ram:TypeCode>VAT</ram:TypeCode>
            <ram:CategoryCode>S</ram:CategoryCode>
            <ram:RateApplicablePercent>#{VAT_RATE}</ram:RateApplicablePercent>
          </ram:ApplicableTradeTax>
          <ram:SpecifiedTradeSettlementLineMonetarySummation>
            <ram:LineTotalAmount>#{xml_amount(quantity * price)}</ram:LineTotalAmount>
          </ram:SpecifiedTradeSettlementLineMonetarySummation>
        </ram:SpecifiedLineTradeSettlement>
      </ram:IncludedSupplyChainTradeLineItem>
    XML
  end

  def xml_address(party)
    <<~XML.gsub(/^/, "        ").chomp
      <ram:PostalTradeAddress>
        <ram:PostcodeCode>#{xml(party[:postcode])}</ram:PostcodeCode>
        <ram:LineOne>#{xml(party[:street])}</ram:LineOne>
        <ram:CityName>#{xml(party[:city])}</ram:CityName>
        <ram:CountryID>#{party[:country]}</ram:CountryID>
      </ram:PostalTradeAddress>
    XML
  end

  def xml_vat_id(party)
    <<~XML.gsub(/^/, "        ").chomp
      <ram:SpecifiedTaxRegistration>
        <ram:ID schemeID="VA">#{party[:vat_id]}</ram:ID>
      </ram:SpecifiedTaxRegistration>
    XML
  end

  def xml_date(date) = %(<udt:DateTimeString format="102">#{date.strftime("%Y%m%d")}</udt:DateTimeString>)
  def xml_amount(amount) = format("%.2f", amount)
  def xml(text) = text.to_s.gsub("&", "&amp;").gsub("<", "&lt;").gsub(">", "&gt;")
end

if $PROGRAM_NAME == __FILE__
  ExampleEInvoice.preview.to_pdf(File.expand_path("e_invoice.pdf", __dir__))
  puts "wrote examples/e_invoice.pdf"
end

# frozen_string_literal: true

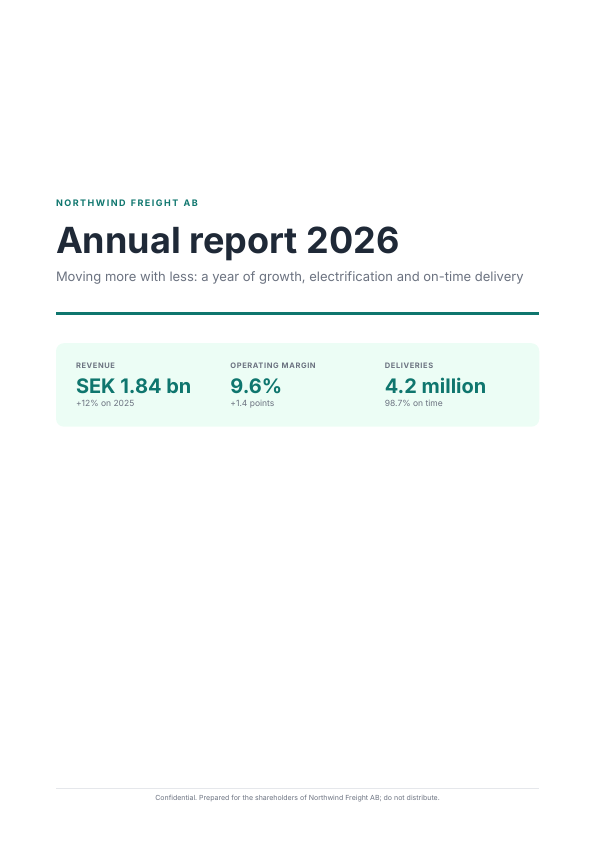

# A multi-page annual report: cover, contents, bookmarks, lists, a table and
# internal links. Run it to write examples/report.pdf:
#
#   ruby -Ilib examples/report.rb
#   ruby -Ilib exe/stationery render examples/report.rb
require "stationery"

class ExampleReport < Stationery::Document
  ACCENT = "#0F766E"
  INK = "#1F2937"
  MUTED = "#6B7280"
  HAIRLINE = "#E5E7EB"
  ZEBRA = "#F9FAFB"
  TINT = "#ECFDF5"
  CHECK = <<~SVG
    <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24"><circle cx="12" cy="12" r="11" fill="currentColor"/>
    <path d="M7 12.5l3.2 3.2L17 9" fill="none" stroke="#FFFFFF" stroke-width="2.2" stroke-linecap="round"
    stroke-linejoin="round"/></svg>
  SVG

  page size: :a4, margin: [48, 56, 40, 56]
  default_text size: 10.5, color: INK
  metadata title: "Annual report 2026", author: "Northwind Freight AB", creator: "stationery example", lang: "en"
  tagged

  header(on: :rest, gap: 18) do |page|
    row(align: :bottom) do
      text "Annual report 2026", size: 8, weight: :bold, color: ACCENT
      text "Page #{page.number} of #{page.count}", size: 8, color: MUTED, align: :right
    end
  end

  footer(gap: 14) do
    rule height: 0.5, color: HAIRLINE
    spacer 5
    text "Confidential. Prepared for the shareholders of Northwind Freight AB; do not distribute.",
         size: 7, color: MUTED, align: :center
  end

  def self.preview
    new(figures: [["Revenue", "SEK 1.84 bn", "+12% on 2025"], ["Operating margin", "9.6%", "+1.4 points"],
                  ["Deliveries", "4.2 million", "98.7% on time"]],
        regions: [["Nordics", "Road", 612.4, 671.0], ["Nordics", "Rail", 188.2, 214.9],
                  ["DACH", "Road", 402.7, 455.3], ["Benelux", "Sea", 211.9, 236.4],
                  ["UK & Ireland", "Sea", 158.0, 162.7], ["Baltics", "Road", 92.5, 101.8]])
  end

  def initialize(figures:, regions:)
    super()
    @figures = figures
    @regions = regions
  end

  def view_template
    cover
    page_break
    text "Contents", size: 20, weight: :bold, bookmark: "Contents", heading: 2
    spacer 14
    table_of_contents(levels: 1..2, size: 10, color: INK, gap: 6, indent: 16)
    page_break
    text_style(align: :justify, leading: 3) do
      introduction
      highlights
      financial_review
      operations
      risks
      page_break
      appendix
    end
  end

  private

  def cover
    spacer 150
    text "NORTHWIND FREIGHT AB", size: 9, weight: :bold, color: ACCENT, letter_spacing: 1.5
    spacer 10
    text "Annual report 2026", size: 36, weight: :bold, heading: 1
    spacer 6
    text "Moving more with less: a year of growth, electrification and on-time delivery", size: 13, color: MUTED
    spacer 28
    rule height: 3, color: ACCENT
    spacer 28
    box(background: TINT, radius: 8, padding: [18, 20]) do
      row(gap: 20) do
        @figures.each do |label, value, note|
          column do
            text label.upcase, size: 7.5, weight: :bold, color: MUTED, letter_spacing: 0.6
            spacer 4
            text value, size: 20, weight: :bold, color: ACCENT
            text note, size: 8.5, color: MUTED
          end
        end
      end
    end
  end

  def heading(title, bookmark:, anchor: nil)
    spacer 18
    text title, size: 16, weight: :bold, color: ACCENT, bookmark:, anchor:, keep_with_next: 60, heading: 2
    spacer 8
  end

  def subheading(title)
    spacer 10
    text title, size: 11.5, weight: :bold, bookmark: { title: title.sub(/\A[\d.]+ /, ""), level: 2 },
                keep_with_next: 40, heading: 3
    spacer 4
  end

  def paragraphs(*texts)
    texts.each_with_index do |body, index|
      spacer 7 if index.positive?
      text body, markup: true
    end
  end

  def introduction
    heading "1. Introduction", bookmark: "Introduction", anchor: "intro"
    paragraphs "Northwind Freight closed 2026 with the strongest result in its twenty-year history. Revenue grew " \
               "by twelve per cent to SEK 1.84 billion, driven by new contract logistics customers in Germany " \
               "and a full year of the Gothenburg rail shuttle. At the same time we cut emissions per delivered " \
               "tonne by eighteen per cent, ahead of the target we set ourselves three years ago.",
               "This report covers the financial year from 1 January to 31 December 2026 and the parent company " \
               "together with its five subsidiaries. Figures are in millions of Swedish kronor unless stated " \
               "otherwise, and comparisons are with the previous year. Definitions of the key figures are " \
               "collected at the end of the report."
    spacer 7
    text "See the appendix for definitions and methodology.", link: "#appendix", color: ACCENT, underline: true
    subheading "1.1 About this report"
    paragraphs "The report was prepared by the finance team and reviewed by the board's audit committee. " \
               "Sustainability data follows the Greenhouse Gas Protocol and was verified by an independent " \
               "auditor. Where estimates were necessary, for example for subcontracted haulage, the method is " \
               "described next to the figure so that readers can judge its reliability."
    subheading "1.2 A word from the chief executive"
    paragraphs "Twelve months ago we promised to grow without growing our footprint. I am proud that we kept that " \
               "promise: every tonne we moved this year produced less carbon than the year before, and our " \
               "customers noticed. Three of our five largest contracts were renewed early, two of them with " \
               "electric delivery written into the terms.",
               "None of this happens without the 2,300 people who load, drive, plan and repair every day. Sick " \
               "leave fell for the second year running and our safety record is the best in the industry. " \
               "Thank you for another year of hard, careful work.",
               "<i>Karin Lindqvist, Chief Executive Officer</i>"
  end

  def highlights
    heading "2. Highlights of the year", bookmark: "Highlights"
    [["Rail shuttle", "Five weekly departures between Gothenburg and Duisburg replaced 9,400 truck journeys."],
     ["Electric fleet", "112 battery-electric tractors in daily service, up from 38 a year earlier."],
     ["Customer satisfaction", "Net promoter score rose from 41 to 52 in every business area."]].each do |title, body|
      spacer 6
      row(gap: 10) do
        column(width: 16) { svg CHECK, width: 14, color: ACCENT, alt: false }
        column { text "<b>#{title}.</b> #{body}", markup: true, align: :left }
      end
    end
    subheading "2.1 Growth drivers"
    ul(gap: 5, marker_color: ACCENT) do
      li "Contract logistics for three new automotive suppliers in southern Germany."
      li(gap: 4) do
        text "Intermodal capacity on the corridors that matter most to our customers:"
        ul(gap: 3) do
          li "Gothenburg to Duisburg, five departures a week"
          li "Malmö to Rotterdam, trial service from October"
        end
      end
      li "Higher utilisation of the Jönköping hub after the new sorting line went live in March."
    end
  end

  def financial_review
    heading "3. Financial review", bookmark: "Financial review"
    paragraphs "Net revenue increased to SEK 1,842 million (1,666). Organic growth was ten per cent; the rest came " \
               "from the acquisition of Baltic Parcel in February. Operating profit rose to SEK 177 million, " \
               "giving an operating margin of 9.6 per cent (8.2). Cash flow from operations was SEK 231 million."
    subheading "3.1 Revenue by region"
    revenue_table
    subheading "3.2 Outlook"
    paragraphs "We expect the freight market to remain soft in the first half of 2027 and to recover later in the " \
               "year. Our priorities are unchanged: grow contract logistics, fill the rail shuttle and continue " \
               "the move to electric trucks, which already lowers our cost per kilometre on regional routes."
  end

  def revenue_table
    rows = [%w[Region Mode 2025 2026 Change]]
    @regions.each do |region, mode, before, after|
      rows << [region, mode, amount(before), amount(after), change(before, after)]
    end
    before = @regions.sum { |row| row[2] }
    after = @regions.sum { |row| row[3] }
    rows << [{ content: "Group total", colspan: 2 }, amount(before), amount(after), change(before, after)]

    table(rows, width: :full, widths: [nil, 70, 70, 70, 60], header: true,
                cell: { padding: [6, 8], borders: [], size: 9, align: :left }) do |t|
      t.row(0).set(background: ACCENT, color: "#FFFFFF", weight: :bold)
      t.columns(2..).align = :right
      t.zebra(from: 1, to: @regions.size, color: ZEBRA)
      t.row(-1).set(weight: :bold, borders: [:top], border_color: INK, border_width: 1)
    end
    spacer 4
    text "Amounts in SEK million.", size: 8, color: MUTED
  end

  def operations
    heading "4. Operations", bookmark: "Operations"
    paragraphs "Our network handled 4.2 million deliveries, of which 98.7 per cent arrived within the agreed " \
               "window. The main operational changes during the year were, in order of impact:"
    spacer 6
    ol(gap: 4, marker_color: ACCENT) do
      li "Commissioning the automated sorting line in Jönköping."
      li "Moving night-time linehaul between Stockholm and Malmö to electric tractors."
      li "Consolidating three Danish terminals into the new Kolding cross-dock."
    end
    subheading "4.1 Sustainability"
    paragraphs "Emissions from our own fleet fell to 38,200 tonnes of CO<sub>2</sub>e. Subcontracted haulage remains " \
               "the larger share, and from 2027 new carrier contracts include reporting requirements."
    spacer 12
    callout
  end

  def callout
    box(background: TINT, radius: 8, padding: 16, border: { color: ACCENT, width: 0.75 }, break_inside: :auto) do
      text "What we learned from electrifying linehaul", size: 11, weight: :bold, color: ACCENT
      spacer 6
      paragraphs "Charging, not range, set the pace. Trucks that could have run 300 kilometres waited for chargers " \
                 "that were shared with the local bus operator, so we now book depot power in advance.",
                 "Drivers adapted quickly. After two weeks of training, energy use per kilometre was within five " \
                 "per cent of the manufacturer's figure, and sick leave in the pilot group fell.",
                 "Maintenance costs were lower than planned. Fewer moving parts meant 40 per cent fewer workshop " \
                 "hours per vehicle, although tyres wear faster because of the heavier battery packs.",
                 "Residual values are the open question. The second-hand market for electric tractors is still " \
                 "thin, so we depreciate them over six years instead of eight until prices settle.",
                 "Next year we will extend the programme to the Oslo and Helsinki terminals and publish the " \
                 "full cost comparison with diesel operation in the sustainability report."
    end
  end

  def risks
    heading "5. Risks and uncertainties", bookmark: "Risks"
    paragraphs "The board reviews the group's risks twice a year. The most significant are listed below together " \
               "with how we manage them; none of them changed materially during 2026."
    spacer 6
    ul(gap: 5, marker_color: ACCENT) do
      li "<b>Demand.</b> Freight volumes follow industrial production. Long contracts with index clauses " \
         "cover about 60 per cent of revenue.", markup: true
      li "<b>Energy prices.</b> Diesel and electricity are hedged twelve months ahead for three quarters of " \
         "expected use.", markup: true
      li "<b>Drivers.</b> The industry is short of qualified drivers. Our academy trained 140 new drivers this " \
         "year, and staff turnover fell to 11 per cent.", markup: true
    end
  end

  def appendix
    heading "6. Appendix", bookmark: "Appendix", anchor: "appendix"
    subheading "6.1 Definitions"
    [["Operating margin", "Operating profit as a percentage of net revenue."],
     ["On-time delivery", "Deliveries made within the time window agreed with the customer."],
     ["Emission intensity", "Grams of CO<sub>2</sub>e per tonne-kilometre, well to wheel."]].each do |term, meaning|
      text "<b>#{term}.</b> #{meaning}", markup: true
      spacer 4
    end
    subheading "6.2 Five-year summary"
    five_year_summary
    spacer 12
    text %(Return to the <link href="#intro"><color rgb="#{ACCENT}">introduction</color></link>.), markup: true
  end

  def five_year_summary
    rows = [["SEK million", "2022", "2023", "2024", "2025", "2026"],
            ["Net revenue", "1,288", "1,402", "1,531", "1,666", "1,842"],
            ["Operating profit", "97", "104", "118", "137", "177"],
            ["Operating margin", "7.5%", "7.4%", "7.7%", "8.2%", "9.6%"],
            ["Employees", "1,940", "2,010", "2,120", "2,210", "2,300"],
            ["On-time delivery", "96.1%", "96.8%", "97.4%", "98.1%", "98.7%"]]
    table(rows, width: :full, widths: [nil, 62, 62, 62, 62, 62], header: true,
                cell: { padding: [5, 8], borders: [:bottom], border_color: HAIRLINE, size: 9, align: :left }) do |t|
      t.row(0).set(weight: :bold, border_color: INK)
      t.columns(1..).align = :right
      t.column(-1).weight = :bold
    end
  end

  def amount(value) = format("%.1f", value)
  def change(before, after) = format("%+.1f%%", (after - before) / before * 100)
end

if $PROGRAM_NAME == __FILE__
  report = ExampleReport.preview
  report.to_pdf(File.expand_path("report.pdf", __dir__))
  warn report.warnings.map(&:message) if report.warnings.any?
  puts "wrote examples/report.pdf"
end

# frozen_string_literal: true

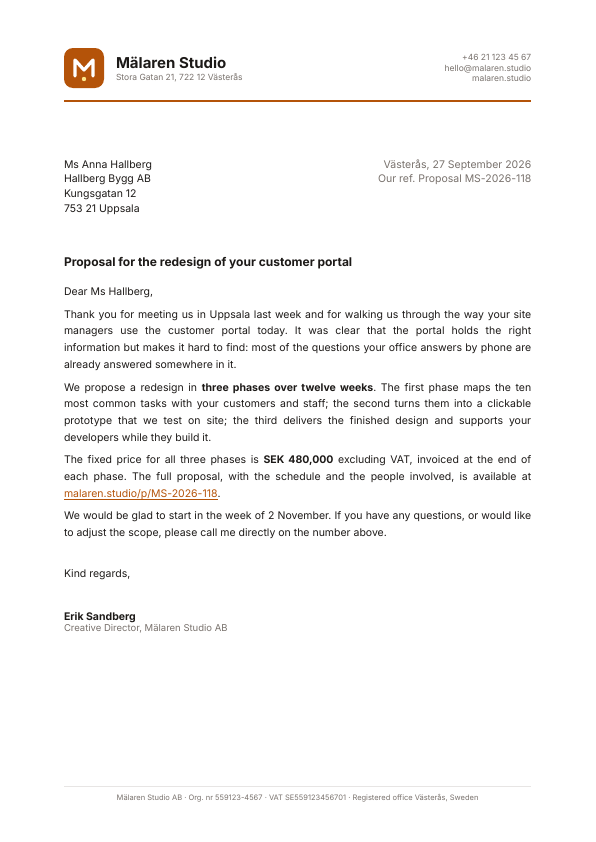

# A one-page business letter with a vector letterhead. Run it to write
# examples/letter.pdf:
#
#   ruby -Ilib examples/letter.rb
#   ruby -Ilib exe/stationery render examples/letter.rb
require "stationery"

class ExampleLetter < Stationery::Document
  ACCENT = "#B45309"
  INK = "#1C1917"
  MUTED = "#78716C"
  HAIRLINE = "#E7E5E4"
  LOGO = <<~SVG
    <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 40 40">
      <rect width="40" height="40" rx="9" fill="#B45309"/>
      <path d="M11 28V12l9 10 9-10v16" fill="none" stroke="#FFFFFF" stroke-width="3.2"
            stroke-linecap="round" stroke-linejoin="round"/>
      <circle cx="20" cy="31" r="2.2" fill="#FDE68A"/>
    </svg>
  SVG

  page size: :a4, margin: [48, 64, 40, 64]
  default_text size: 10.5, color: INK
  metadata title: "Letter to Hallberg Bygg AB", author: "Mälaren Studio AB", creator: "stationery example"

  footer do
    rule height: 0.5, color: HAIRLINE
    spacer 6
    text "Mälaren Studio AB · Org. nr 559123-4567 · VAT SE559123456701 · Registered office Västerås, Sweden",
         size: 7.5, color: MUTED, align: :center
  end

  def self.preview
    new(recipient: ["Ms Anna Hallberg", "Hallberg Bygg AB", "Kungsgatan 12", "753 21 Uppsala"],
        date: "27 September 2026", reference: "Proposal MS-2026-118")
  end

  def initialize(recipient:, date:, reference:)
    super()
    @recipient = recipient
    @date = date
    @reference = reference
  end

  def view_template
    letterhead
    spacer 56
    row do
      column(width: 0.6) { text @recipient.join("\n"), leading: 2 }
      column(width: 0.4) { text "Västerås, #{@date}\nOur ref. #{@reference}", color: MUTED, align: :right, leading: 2 }
    end
    spacer 40
    text "Proposal for the redesign of your customer portal", size: 12, weight: :bold
    spacer 16
    body
    spacer 28
    signature
  end

  private

  def letterhead
    row(align: :middle, gap: 12) do
      column(width: 40) { svg LOGO, width: 40 }
      column do
        text "Mälaren Studio", size: 15, weight: :bold
        text "Stora Gatan 21, 722 12 Västerås", size: 8.5, color: MUTED
      end
      column(width: 160) do
        text_style(size: 8.5, color: MUTED, align: :right, leading: 1.5) do
          text "+46 21 123 45 67"
          text "[email protected]"
          text "malaren.studio"
        end
      end
    end
    spacer 12
    rule height: 2, color: ACCENT
  end

  def body
    text_style(align: :justify, leading: 4) do
      [
        "Dear Ms Hallberg,",
        "Thank you for meeting us in Uppsala last week and for walking us through the way your site managers " \
        "use the customer portal today. It was clear that the portal holds the right information but makes it " \
        "hard to find: most of the questions your office answers by phone are already answered somewhere in it.",
        "We propose a redesign in <b>three phases over twelve weeks</b>. The first phase maps the ten most " \
        "common tasks with your customers and staff; the second turns them into a clickable prototype that we " \
        "test on site; the third delivers the finished design and supports your developers while they build it.",
        "The fixed price for all three phases is <b>SEK 480,000</b> excluding VAT, invoiced at the end of each " \
        "phase. The full proposal, with the schedule and the people involved, is available at " \
        "<link href='https://malaren.studio/p/MS-2026-118'><color rgb='#{ACCENT}'><u>malaren.studio/p/MS-2026-118</u>" \
        "</color></link>.",
        "We would be glad to start in the week of 2 November. If you have any questions, or would like to " \
        "adjust the scope, please call me directly on the number above."
      ].each_with_index do |paragraph, index|
        spacer 10 if index.positive?
        text paragraph, markup: true
      end
    end
  end

  def signature
    group(keep_together: true) do
      text "Kind regards,"
      spacer 30
      text "Erik Sandberg", weight: :bold
      text "Creative Director, Mälaren Studio AB", color: MUTED, size: 9.5
    end
  end
end

if $PROGRAM_NAME == __FILE__
  letter = ExampleLetter.preview
  letter.to_pdf(File.expand_path("letter.pdf", __dir__))
  warn letter.warnings.map(&:message) if letter.warnings.any?
  puts "wrote examples/letter.pdf"
end

# frozen_string_literal: true

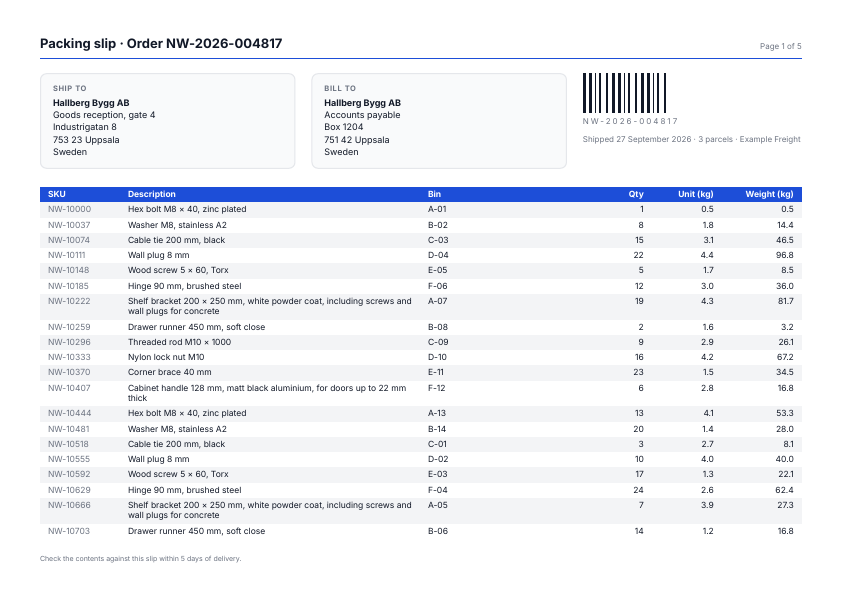

# A landscape packing slip: a long table that repeats its header on every
# page and a barcode drawn on a canvas. Run it to write examples/packing_slip.pdf:
#
#   ruby -Ilib examples/packing_slip.rb
#   ruby -Ilib exe/stationery render examples/packing_slip.rb
require "stationery"

class ExamplePackingSlip < Stationery::Document
  ACCENT = "#1D4ED8"
  INK = "#111827"
  MUTED = "#6B7280"
  HAIRLINE = "#E5E7EB"
  ZEBRA = "#F3F4F6"
  PANEL = "#F9FAFB"

  PRODUCTS = ["Hex bolt M8 × 40, zinc plated", "Washer M8, stainless A2", "Cable tie 200 mm, black",
              "Wall plug 8 mm", "Wood screw 5 × 60, Torx", "Hinge 90 mm, brushed steel",
              "Shelf bracket 200 × 250 mm, white powder coat, including screws and wall plugs for concrete",
              "Drawer runner 450 mm, soft close", "Threaded rod M10 × 1000", "Nylon lock nut M10",
              "Corner brace 40 mm", "Cabinet handle 128 mm, matt black aluminium, for doors up to 22 mm thick"].freeze

  page size: :a4, layout: :landscape, margin: [36, 40, 32, 40]
  default_text size: 9, color: INK
  metadata title: "Packing slip", creator: "stationery example"

  header(gap: 14) do |page|
    row(align: :bottom) do
      text "Packing slip · Order NW-2026-004817", size: 13, weight: :bold
      text "Page #{page.number} of #{page.count}", size: 8, color: MUTED, align: :right
    end
    spacer 6
    rule height: 1.5, color: ACCENT
  end

  footer { text "Check the contents against this slip within 5 days of delivery.", size: 7, color: MUTED }

  def self.preview
    items = Array.new(120) do |i|
      sku = "NW-#{10_000 + (i * 37)}"
      bin = "#{"ABCDEF"[i % 6]}-#{((i % 14) + 1).to_s.rjust(2, "0")}"
      [sku, PRODUCTS[i % PRODUCTS.size], bin, ((i * 7) % 24) + 1, (((i * 13) % 40) + 5) / 10.0]
    end
    new(order: "NW-2026-004817", items:,
        ship_to: ["Hallberg Bygg AB", "Goods reception, gate 4", "Industrigatan 8", "753 23 Uppsala", "Sweden"],
        bill_to: ["Hallberg Bygg AB", "Accounts payable", "Box 1204", "751 42 Uppsala", "Sweden"])
  end

  def initialize(order:, items:, ship_to:, bill_to:)
    super()
    @order = order
    @items = items
    @ship_to = ship_to
    @bill_to = bill_to
  end

  def view_template
    row(gap: 16) do
      column(width: 0.35) { address("SHIP TO", @ship_to) }
      column(width: 0.35) { address("BILL TO", @bill_to) }
      column { barcode }
    end
    spacer 18
    items_table
  end

  private

  def address(label, lines)
    box(background: PANEL, border: { color: HAIRLINE, width: 1 }, radius: 6, padding: [10, 12]) do
      text label, size: 7.5, weight: :bold, color: MUTED, letter_spacing: 0.6
      spacer 4
      text "<b>#{lines.first}</b>\n#{lines.drop(1).join("\n")}", markup: true, leading: 1.5
    end
  end

  def barcode
    digits = @order.delete("^0-9").chars.map(&:to_i)
    canvas(height: 40) do |canvas, rect|
      x = rect.x
      digits.cycle(3).each_with_index do |digit, index|
        width = 1 + (digit % 3)
        canvas.fill_rect(x, rect.y, width, rect.height, color: INK) if index.even?
        x += width + 1
      end
    end
    spacer 4
    text @order, size: 8, color: MUTED, letter_spacing: 2
    spacer 8
    text "Shipped 27 September 2026 · 3 parcels · Example Freight", size: 8, color: MUTED
  end

  def items_table
    rows = [["SKU", "Description", "Bin", "Qty", "Unit (kg)", "Weight (kg)"]]
    @items.each do |sku, name, bin, qty, weight|
      rows << [sku, name, bin, qty.to_s, kilograms(weight), kilograms(qty * weight)]
    end
    rows << [{ content: "#{@items.size} lines", colspan: 3 }, @items.sum { |item| item[3] }.to_s, "",
             kilograms(@items.sum { |*, qty, weight| qty * weight })]

    table(rows, header: true, split_rows: true, width: :full, widths: [80, 300, nil, 60, 70, 80],
                cell: { padding: [2.5, 8], borders: [], size: 8.5 }) do |t|
      t.row(0).set(background: ACCENT, color: "#FFFFFF", weight: :bold)
      t.columns(0).rows(1..).color = MUTED
      t.columns(3..).align = :right
      t.zebra(from: 1, to: @items.size, color: ZEBRA)
      t.row(-1).set(weight: :bold, color: INK, borders: [:top], border_color: INK, border_width: 1)
    end
  end

  def kilograms(value) = format("%.1f", value)
end

if $PROGRAM_NAME == __FILE__
  slip = ExamplePackingSlip.preview
  slip.to_pdf(File.expand_path("packing_slip.pdf", __dir__))
  warn slip.warnings.map(&:message) if slip.warnings.any?
  puts "wrote examples/packing_slip.pdf"
end

# frozen_string_literal: true

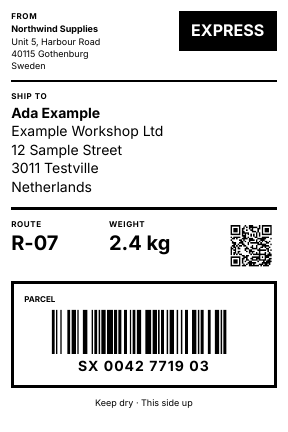

# A 4 × 6 in shipping label for a thermal label printer, in black and white
# only, with a Code 128 and a QR code, written as a PDF and as ZPL whose
# barcodes the printer draws itself (`native: true`). Run it to write
# examples/shipping_label.pdf and examples/shipping_label.zpl:
#
#   ruby -Ilib examples/shipping_label.rb
#   ruby -Ilib exe/stationery render examples/shipping_label.rb --zpl --dpi 203
require "stationery"

class ExampleShippingLabel < Stationery::Document
  page size: "4in x 6in", margin: mm(4)
  max_pages 1 # one label: what does not fit warns, and to_zpl writes no second label
  monochrome dpi: 203
  default_text size: 10
  metadata title: "Shipping label", creator: "stationery example"

  def self.preview
    new(parcel: "SX 0042 7719 03", service: "EXPRESS", weight: "2.4 kg", route: "R-07",
        from: ["Northwind Supplies", "Unit 5, Harbour Road", "40115 Gothenburg", "Sweden"],
        to: ["Ada Example", "Example Workshop Ltd", "12 Sample Street", "3011 Testville", "Netherlands"])
  end

  def initialize(parcel:, service:, weight:, route:, from:, to:)
    super()
    @parcel = parcel
    @service = service
    @weight = weight
    @route = route
    @from = from
    @to = to
  end

  def view_template
    row(gap: 8) do
      column(width: 0.62) { address("FROM", @from, size: 9) }
      column { service }
    end
    spacer 8
    rule height: 2
    spacer 10
    address("SHIP TO", @to, size: 14)
    spacer 12
    rule height: 2
    spacer 10
    row(gap: 8, align: :center) do
      column(width: 0.36) { detail("ROUTE", @route) }
      column(width: 0.36) { detail("WEIGHT", @weight) }
      column { barcode "https://track.example/#{code}", type: :qr, module_size: 1.4, align: :right, native: true }
    end
    spacer 10
    box(border: { width: 3 }, padding: 10) do
      text "PARCEL", size: 8, weight: :bold
      spacer 6
      barcode code, module_size: 1.5, height: 44, align: :center, native: true
      spacer 4
      text @parcel, size: 14, weight: :bold, letter_spacing: 1, align: :center
    end
    spacer 10
    text "Keep dry · This side up", size: 9, align: :center
  end

  private

  def code = @parcel.delete(" ")

  def address(label, lines, size:)
    text label, size: 8, weight: :bold, letter_spacing: 0.6
    spacer 3
    text "<b>#{lines.first}</b>\n#{lines.drop(1).join("\n")}", size:, markup: true, leading: 1.5
  end

  def service
    box(background: "#000000", padding: [10, 6]) do
      text @service, size: 16, weight: :bold, color: "#FFFFFF", align: :center
    end
  end

  def detail(label, value)
    text label, size: 8, weight: :bold, letter_spacing: 0.6
    spacer 2
    text value, size: 20, weight: :bold
  end
end

if $PROGRAM_NAME == __FILE__
  label = ExampleShippingLabel.preview
  label.to_pdf(File.expand_path("shipping_label.pdf", __dir__))
  label.to_zpl(File.expand_path("shipping_label.zpl", __dir__))
  warn label.warnings.map(&:message) if label.warnings.any?
  puts "wrote examples/shipping_label.pdf and examples/shipping_label.zpl"
end

# frozen_string_literal: true

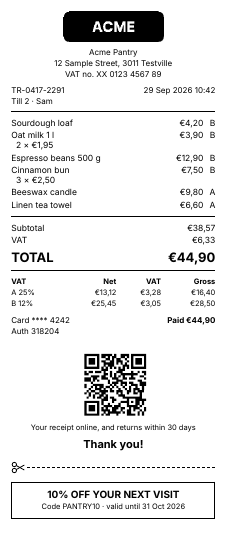

# A till receipt on an 80 mm roll, in black and white only: a logo, the
# items with their VAT rates, VAT by rate, the total and the payment, a QR
# code of the receipt online, and a cut line drawn on a `canvas` above a
# coupon. Run it to write examples/receipt.pdf:
#
#   ruby -Ilib examples/receipt.rb
#   ruby -Ilib exe/stationery render examples/receipt.rb --png
require "stationery"

class ExampleReceipt < Stationery::Document
  LOGO = File.expand_path("assets/logo.png", __dir__)
  RATES = { "A" => 25, "B" => 12 }.freeze

  # A receipt printer feeds the roll for as long as there is something to
  # print and cuts it after the last line. A PDF page has a length, so this
  # one is as long as its content: 80 mm wide (72 mm of it printable) and
  # 195 mm long. A printer driver set to the roll prints it as it is.
  #
  # Receipt printers print one bit at 203 dpi. `snap: true` makes every colour
  # black or white and puts rules on the printer's dots; `dither: :threshold`
  # cuts the colour logo at half, so its letters stay clean instead of
  # speckled. They are driven in ESC/POS, not ZPL: `to_zpl` is for label
  # printers, and ESC/POS is not something Stationery writes. Print the PDF,
  # or send `to_png` to a driver that takes a picture.
  page size: [mm(80), mm(195)], margin: [mm(4), mm(4), mm(6), mm(4)]
  max_pages 1 # one slip of paper: what does not fit warns instead of starting a second
  monochrome dpi: 203, snap: true, dither: :threshold
  default_text size: 8.5, leading: 1.5
  metadata title: "Receipt", creator: "stationery example"

  def self.preview
    items = [["Sourdough loaf", 1, 4.20, "B"], ["Oat milk 1 l", 2, 1.95, "B"], ["Espresso beans 500 g", 1, 12.90, "B"],
             ["Cinnamon bun", 3, 2.50, "B"], ["Beeswax candle", 1, 9.80, "A"], ["Linen tea towel", 1, 6.60, "A"]]
    new(number: "TR-0417-2291", at: "29 Sep 2026 10:42", till: "Till 2 · Sam", items:,
        payment: { method: "Card **** 4242", reference: "Auth 318204" })
  end

  def initialize(number:, at:, till:, items:, payment:)
    super()
    @number = number
    @at = at
    @till = till
    @items = items
    @payment = payment
  end

  def view_template
    header
    dashes
    line_items
    dashes
    totals
    dashes
    vat
    spacer 6
    payment
    spacer 10
    online
    spacer 10
    cut_line
    spacer 8
    coupon
  end

  private

  def header
    image LOGO, height: 30, align: :center
    spacer 6
    text "Acme Pantry\n12 Sample Street, 3011 Testville\nVAT no. XX 0123 4567 89", align: :center, size: 8
    spacer 6
    row do
      column { text "#{@number}\n#{@till}", size: 8 }
      column { text @at, size: 8, align: :right }
    end
  end

  def line_items
    rows = @items.map do |name, qty, price, rate|
      [qty > 1 ? "#{name}\n  #{qty} × #{money(price)}" : name, money(qty * price), rate]
    end
    table(rows, width: :full, widths: [nil, 56, 12], cell: { borders: [], padding: [1, 0] }) do |t|
      t.columns(1..).align = :right
    end
  end

  def totals
    table([["Subtotal", money(total - vat_total)], ["VAT", money(vat_total)]],
          width: :full, widths: [nil, 70], cell: { borders: [], padding: [1, 0] }) do |t|
      t.column(1).align = :right
    end
    spacer 3
    row do
      column { text "TOTAL", size: 13, weight: :bold }
      column { text money(total), size: 13, weight: :bold, align: :right }
    end
  end

  # Prices include VAT, as a till's do: the VAT in a gross amount at r % is
  # gross × r / (100 + r).
  def vat
    rows = [%w[VAT Net VAT Gross]]
    by_rate.each do |code, gross|
      rate = RATES.fetch(code)
      tax = (gross * rate / (100 + rate)).round(2)
      rows << ["#{code} #{rate}%", money(gross - tax), money(tax), money(gross)]
    end
    table(rows, width: :full, cell: { borders: [], padding: [1, 0], size: 7.5 }) do |t|
      t.columns(1..).align = :right
      t.row(0).weight = :bold
    end
  end

  def payment
    row do
      column { text "#{@payment[:method]}\n#{@payment[:reference]}", size: 8 }
      column { text "Paid #{money(total)}", size: 8, weight: :bold, align: :right }
    end
  end

  def online
    barcode "https://receipts.example/r/#{@number}", type: :qr, module_size: 2, align: :center
    spacer 3
    text "Your receipt online, and returns within 30 days", size: 7.5, align: :center
    spacer 6
    text "Thank you!", size: 11, weight: :bold, align: :center
  end

  # A dashed line across the paper with a pair of scissors at its start, drawn
  # on a canvas as tall as the scissors.
  def cut_line
    canvas(height: 12) do |c, rect|
      y = rect.y + 6
      c.line(rect.x + 16, y, rect.x + rect.width, y, color: "#000000", width: 0.75, dash: [3, 2])
      c.circle(rect.x + 3, y - 3, 2.2, stroke: "#000000", line_width: 0.8)
      c.circle(rect.x + 3, y + 3, 2.2, stroke: "#000000", line_width: 0.8)
      c.line(rect.x + 5, y - 2, rect.x + 13, y + 2.5, color: "#000000", width: 0.8)
      c.line(rect.x + 5, y + 2, rect.x + 13, y - 2.5, color: "#000000", width: 0.8)
    end
  end

  def coupon
    box(border: { width: 1 }, padding: [6, 8]) do
      text "10% OFF YOUR NEXT VISIT", size: 10, weight: :bold, align: :center
      spacer 2
      text "Code PANTRY10 · valid until 31 Oct 2026", size: 7.5, align: :center
    end
  end

  def dashes
    spacer 5
    rule height: 0.75
    spacer 5
  end

  def by_rate
    @items.group_by(&:last).sort.to_h { |code, items| [code, items.sum { |_, qty, price| qty * price }] }
  end

  def total = @items.sum { |_, qty, price| qty * price }.round(2)

  def vat_total
    by_rate.sum { |code, gross| (gross * RATES.fetch(code) / (100 + RATES.fetch(code))).round(2) }
  end

  def money(amount) = format("€%.2f", amount).tr(".", ",")
end

if $PROGRAM_NAME == __FILE__
  receipt = ExampleReceipt.preview
  receipt.to_pdf(File.expand_path("receipt.pdf", __dir__))
  warn receipt.warnings.map(&:message) if receipt.warnings.any?
  puts "wrote examples/receipt.pdf"
end

# frozen_string_literal: true

# A one-page membership application with every kind of form field: text
# inputs, a multiline note, a comb field, a select box, a radio group, check
# boxes and a signature field. Run it to write examples/form.pdf:
#
#   ruby -Ilib examples/form.rb
#   ruby -Ilib exe/stationery render examples/form.rb
require "stationery"

class ExampleForm < Stationery::Document
  ACCENT = "#0F766E"
  INK = "#111827"
  MUTED = "#6B7280"
  HAIRLINE = "#E5E7EB"
  PLANS = { "basic" => "Basic · SEK 290 / year", "pro" => "Pro · SEK 590 / year",
            "team" => "Team · SEK 1,490 / year" }.freeze

  page size: :a4, margin: [48, 56, 40, 56]
  default_text size: 9.5, color: INK
  metadata title: "Membership application", author: "Nordic Makers Guild", creator: "stationery example",
           lang: "en"

  footer do
    rule height: 0.5, color: HAIRLINE
    spacer 6
    text "Nordic Makers Guild · Box 118, 221 00 Lund · [email protected]", size: 7.5, color: MUTED,
                                                                                align: :center
  end

  def self.preview = new(name: "Astrid Lindqvist", email: "[email protected]", plan: "pro")

  def initialize(name: "", email: "", plan: nil)
    super()
    @name = name
    @email = email
    @plan = plan
  end

  def view_template
    text "Membership application", size: 20, weight: :bold, color: ACCENT
    text "Fill in the form on screen, sign it and send it back to us.", color: MUTED
    spacer 20
    applicant
    spacer 18
    membership
    spacer 18
    consent
  end

  private

  def heading(title)
    text title, size: 11, weight: :bold, keep_with_next: true
    rule height: 0.5, color: HAIRLINE
    spacer 8
  end

  def labelled(label)
    column do
      text label, size: 8, color: MUTED
      spacer 3
      yield
    end
  end

  def applicant
    heading "Applicant"
    row(gap: 12) do
      labelled("Full name") { text_field "applicant.name", value: @name, required: true }
      labelled("Email") { text_field "applicant.email", value: @email, required: true }
    end
    spacer 10
    row(gap: 12) do
      labelled("Street address") { text_field "applicant.address.street" }
      column(width: 90) { labelled("Postcode") { text_field "applicant.address.postcode", comb: 5 } }
      labelled("Country") do
        select "applicant.address.country", options: %w[Sweden Norway Denmark Finland Iceland], value: "Sweden"
      end
    end
  end

  def membership
    heading "Membership"
    PLANS.each do |value, label|
      radio "plan", value, checked: value == @plan, label: label
      spacer 4
    end
    spacer 8
    text "Anything we should know? (workshops you are interested in, accessibility needs)", size: 8, color: MUTED
    spacer 3
    text_field "notes", multiline: true, height: 70
  end

  def consent
    heading "Consent"
    checkbox "terms", label: "I accept the terms of membership and the workshop safety rules."
    spacer 4
    checkbox "newsletter", checked: true, label: "Send me the monthly newsletter."
    spacer 24
    row(gap: 24, align: :bottom) do
      column { signature_field "signature", label: "Signature of the applicant" }
      column(width: 150) { labelled("Date") { text_field "signed_on" } }
    end
  end
end

if $PROGRAM_NAME == __FILE__
  form = ExampleForm.preview
  form.to_pdf(File.expand_path("form.pdf", __dir__))
  warn form.warnings.map(&:message) if form.warnings.any?
  puts "wrote examples/form.pdf"
end

# frozen_string_literal: true

# A shop-window price card a person fills in on screen and prints: the
# product's name centred and shrunk to fit its line, the price large,
# centred and red, the price per unit right-aligned in grey and a select of
# units. The name and price are fitted by the gem and the size it chose is
# written to the file (`font_size: :fit`), so every viewer shows them at
# that size. The fields have no border and no background, so the printed
# card shows the values alone; a viewer that redraws a field after an edit
# keeps its alignment, colour and size (/Q and /DA). Run it to write
# examples/price_card.pdf:
#
#   ruby -Ilib examples/price_card.rb
#   ruby -Ilib exe/stationery render examples/price_card.rb
require "stationery"

class ExamplePriceCard < Stationery::Document
  INK = "#0F172A"
  SALE = "#DC2626"
  MUTED = "#64748B"
  HAIRLINE = "#E2E8F0"
  UNITS = ["per piece", "per kg", "per litre", "per pack"].freeze
  BARE = { border: nil, background: nil }.freeze

  page size: :a5, layout: :landscape, margin: 36
  default_text size: 12, color: INK
  metadata title: "Price card", author: "Corner Coffee Shop", creator: "stationery example", lang: "en"

  footer do
    rule height: 0.5, color: HAIRLINE
    spacer 6
    text "All prices include 25% VAT · Corner Coffee Shop, Stortorget 4, Lund", size: 8, color: MUTED,
                                                                                align: :center
  end

  def self.preview
    new(product: "Espresso machine Deluxe 3000 with milk frother", price: "4 990 kr",
        unit_price: "Was 5 990 kr · save 1 000 kr", unit: "per piece")
  end

  def initialize(product: "", price: "", unit_price: "", unit: UNITS.first)
    super()
    @product = product
    @price = price
    @unit_price = unit_price
    @unit = unit
  end

  def view_template
    text "Corner Coffee Shop", size: 16, weight: :bold, align: :center
    spacer 4
    rule height: 1.5, color: INK
    spacer 10
    label "Product"
    text_style(weight: :bold) do
      text_field "product", value: @product, height: 44, font_size: :fit, max_font_size: 32, align: :center,
                            tooltip: "Product", **BARE
    end
    rule height: 0.5, color: HAIRLINE
    spacer 10
    label "Price"
    text_style(weight: :bold) do
      text_field "price", value: @price, height: 150, font_size: :fit, max_font_size: 120, align: :center,
                          color: SALE, tooltip: "Price", **BARE
    end
    spacer 6
    row(gap: 12) do
      column(width: 150) do
        select "unit", options: UNITS, value: @unit, height: 22, align: :center, tooltip: "Unit", **BARE
      end
      column do
        text_field "note", value: @unit_price, height: 22, align: :right, color: MUTED, tooltip: "Note", **BARE
      end
    end
  end

  private

  def label(title) = text(title.upcase, size: 8, color: MUTED, letter_spacing: 1, align: :center)
end

if $PROGRAM_NAME == __FILE__
  card = ExamplePriceCard.preview
  card.to_pdf(File.expand_path("price_card.pdf", __dir__))
  warn card.warnings.map(&:message) if card.warnings.any?
  puts "wrote examples/price_card.pdf"
end
